Containers

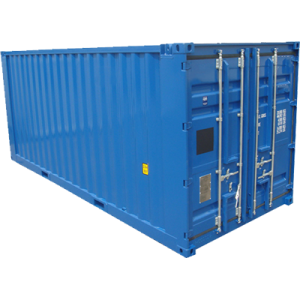

- DRY CONTAINERS
- HIGH CUBE DRY CONTAINERS
- STEEL REEFER CONTAINERS
- OPEN TOP CONTAINERS
- FLAT RACK CONTAINERS

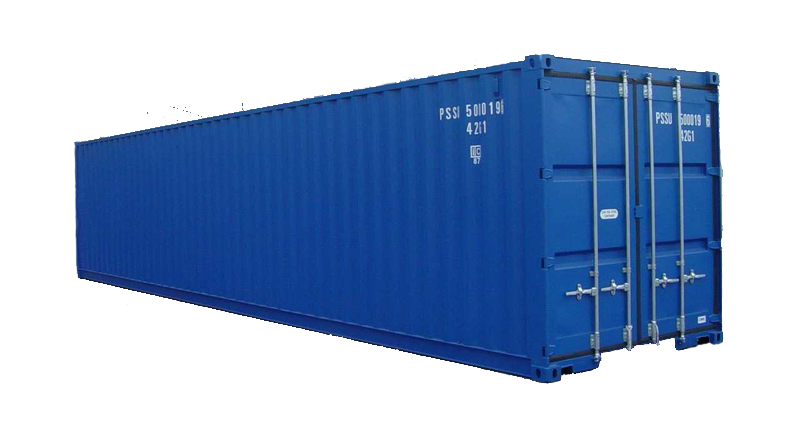

40ft DRY CONTAINERS
Internal Dimension
| Length | 5,897 mm | 19 ft 4.17 in |
| Width | 2,348 mm | 7 ft 8.44 in |
| Height | 2,390 mm | 7 ft 9.90 in |
Internal Dimension
| Length | 12,031 mm | 39 ft 5.66 in |
| Width | 2,348 mm | 7 ft 8.44 in |
| Height | 2,390 mm | 7 ft 9.90 in |
Door Opening
| Width | 2,336 mm | 7 ft 8.01 in |
| Height | 2,280 mm | 7 ft 5.45 in |
Door Opening
| Width | 2,336 mm | 7 ft 8.01 in |
| Height | 2,280 mm | 7 ft 5.45 in |
Weight
| Max Gross | 30,480 kg (24,000 kg) |
67,200 lb (52,910 lb) |
| Tare | 2,240 kg (2,290 kg) |
4,940 lb (5,050 lb) |
| Max Payload | 28,240 kg (21,710 kg) |
62,260 lb (47,860 lb) |
| Load
Capacity |
33.0 cubic
meters |
1,169 cubic
feet |
Weight
| Max Gross | 32,500 kg (30,480 kg) |
71,650 lb (67,200 lb) |
| Tare | 3,750 kg (3,770 kg) |
8,270 lb (8,310 lb) |
| Max Payload | 28,750 kg (26,710 kg) |
63,380 lb (58,890 lb) |
| Load
Capacity |
68.0 cubic
meters(67.4) |
2,385 cubic
feet(2,379) |

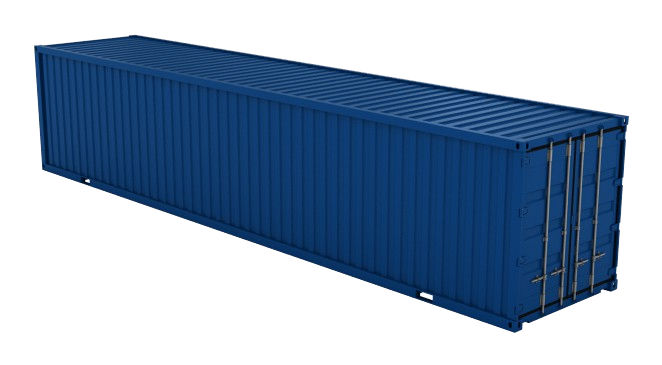

40ft HIGH CUBE DRY CONTAINERS

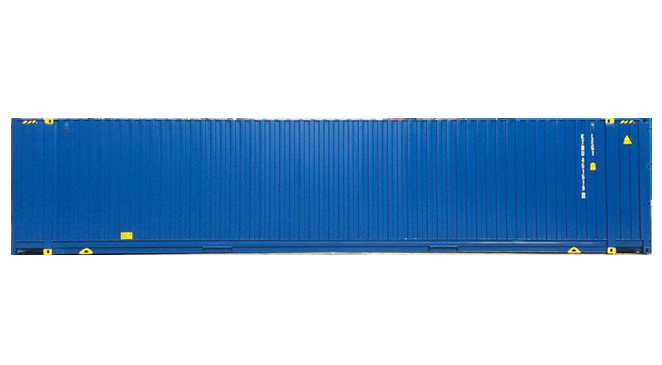

45ft HIGH CUBE DRY CONTAINERS
International Dimension
| Length | 12,031 mm | 39 ft 5.66 in |
| Width | 2,348 mm | 7 ft 8.44 in |
| Height | 2,695 mm | 8 ft 10.12 in |
International Dimension
| Length | 13,555 mm | 44 ft 5.68 in |
| Width | 2,348 mm | 7 ft 8.44 in |
| Height | 2,695 mm | 8 ft 10.12 in |
Door Opening
| Width | 2,336 mm | 7 ft 8.01 in |
| Height | 2,585 mm | 7 ft 5.75 in |
Door Opening
| Width | 2,336 mm | 7 ft 8.01 in |
| Height | 2,280 mm | 7 ft 5.45 in |
Weight
| Max Gross | 32,500 kg (30,480 kg) |
71,650 lb (67,200 lb) |
| Tare | 3,750 kg (3,770 kg) |
8,270 lb (8,310 lb) |
| Max Payload | 28,750 kg (26,710 kg) |
63,380 lb (58,890 lb) |
| Load
Capacity |
68.0 cubic
meters(67.4) |
2,385 cubic
feet(2,379) |
Weight
| Max Gross | 32,500 kg (30,480 kg) |
71,650 lb (67,200 lb) |
| Tare | 4,880 kg
|
10,760 lb
|
| Max Payload | 27,620 kg (25,600 kg) |
60,890 lb (56,440 lb) |
| Load
Capacity |
86 cubic
meters |
3,031 cubic
feet(2,379) |
* Max Gross Weight for 20FT dry containers : 30,480kg from 1999.
* Max Gross Weight for 40FT, 40FT H/C and 45FT H/C dry containers : 32,500kg from 2002
20ft STEEL REEFER CONTAINERS

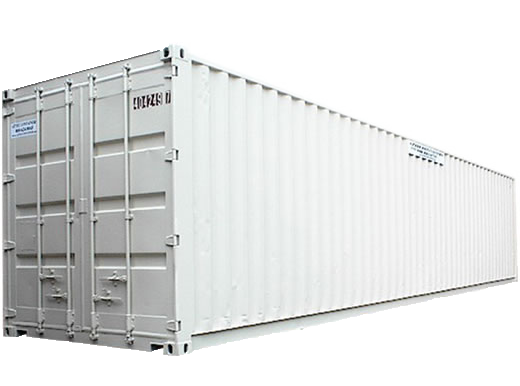

40ft HIGH CUBE STEEL REEFER CONTAINERS

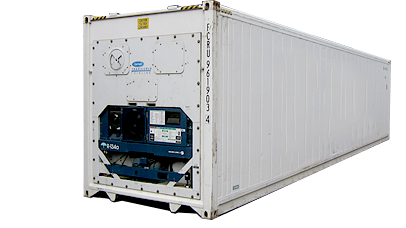

40ft HIGH CUBE ALUM REEFER CONTAINERS
Internal Dimension
| Length | 5,458 mm | 17 ft 10.76 in |
| Width | 2,290 mm | 7 ft 6.16 in |
| Height | 2,262 mm | 7 ft 5.06 in |
Internal Dimension
| Length | 11,587 mm | 38 ft 0.29 in |
| Width | 2,290 mm | 7 ft 6.16 in |
| Height | 2,539 mm | 8 ft 4.00 in |
Internal Dimension
| Length | 11,585 mm | 38 ft 0.29 in |
| Width | 2,290 mm | 7 ft 6.16 in |
| Height | 2,527 mm | 8 ft 3.49 in |
Door Opening
| Width | 2,290 mm | 7 ft 6.16 in |
| Height | 2,267 mm | 7 ft 5.10 in |
Door Opening
| Width | 2,290 mm | 7 ft 6.16 in |
| Height | 2,572 mm | 8 ft 5.40 in |
Door Opening
| Width | 2,290 mm | 7 ft 6.16 in |
| Height | 2,493 mm | 8 ft 2.10 in |
Weight
| Max Gross | 30,480 kg (24,000 kg) |
67,200 lb (52,910 lb) |
| Tare | 3,120 kg (2,960 kg) |
6,880 lb (6,530 lb) |
| Max Payload | 27,360 kg (21,040 kg) |
60,320 lb (46,380 lb) |
| Load
Capacity |
28.0 cubic
meters |
1,000 cubic
feet |
Weight
| Max Gross | 34,000 kg (30,480 kg) |
74,960 lb (67,200 lb) |
| Tare | 4,700 kg (4,800 kg) |
10,360 lb (10,580 lb) |
| Max Payload | 29,300 kg (25,680 kg) |
74,960 lb (56,620 lb) |
| Load
Capacity |
67.0 cubic
meters |
2,378 cubic
feet |
Weight
| Max Gross | 32,500 kg (30,480 kg) |
71,650 lb (67,200 lb) |
| Tare | 4,110 kg | 9,060 lb |
| Max Payload | 28,390 kg
(26,370 kg) |
62,590 lb
(58,140 lb) |

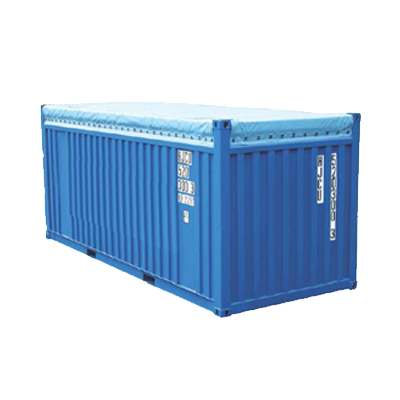

20ft OPEN TOP CONTAINERS

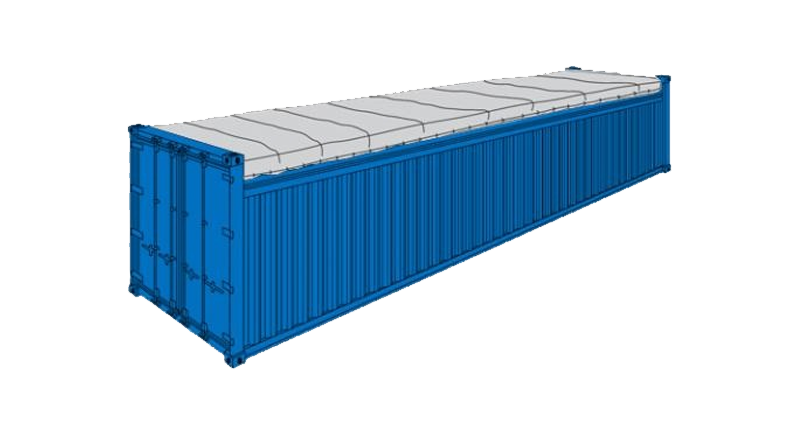

40ft OPEN TOP CONTAINERS
Internal Dimension
| Length | 5,893 mm | 19 ft 4.21 in |
| Width | 2,346 mm | 7 ft 8.36 in |
| Height | 2,384 mm | 7 ft 9.74 in |
Internal Dimension
| Length | 12,032 mm | 39 ft 5.31 in |
| Width | 2,346 mm | 7 ft 8.36 in |
| Height | 2,381 mm | 7 ft 9.74 in |
Door Opening
| Width | 2,338 mm | 7 ft 8.05 in |
| Height | 2,244 mm | 7 ft 4.35 in |
Door Opening
| Width | 2,338 mm | 7 ft 8.05 in |
| Height | 2,244 mm | 7 ft 4.35 in |
Weight
| Max Gross | 30,480 kg (24,000 kg) |
67,200 lb (52,910 lb) |
| Tare | 2,320 kg (2,450 kg) |
5,120 lb (5,400 lb) |
| Max Payload | 28,160 kg (21,550 kg) |
62,080 lb (47,510 lb) |
| Load Capacity | 33 cubic meters | 1,155 cubic feet |
Weight
| Max Gross | 30,480 kg | 67,200 lb |
| Tare | 4,120 kg | 9,080 lb |
| Max Payload | 26,360 kg | 58,120 lb |
| Load Capacity | 66 cubic meters | 2,346 cubic feet |

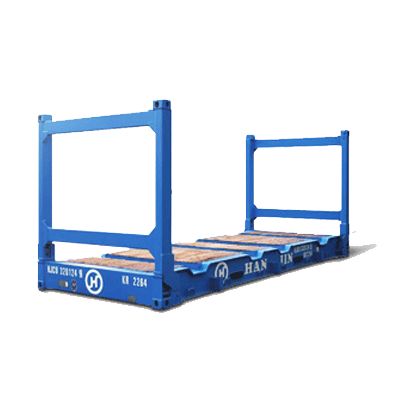

20ft FLAT RACK CONTAINERS

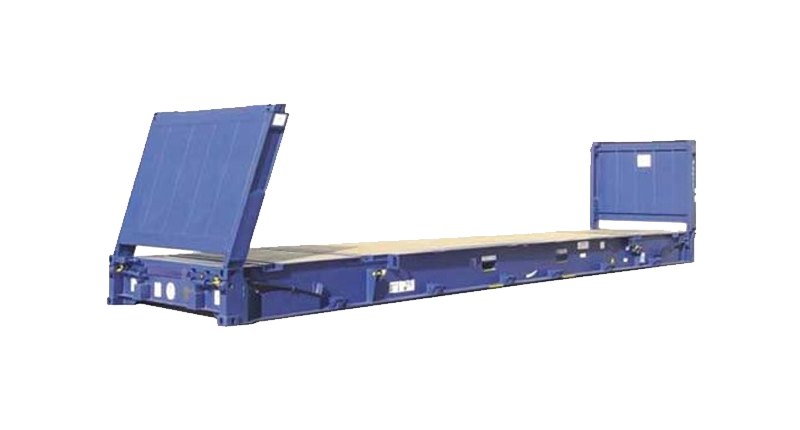

40ft FLAT RACK CONTAINERS
Internal Dimension
| Length | 5,958 mm | 19 ft 4.17 in |
| Width | 2,018 mm | 6 ft 7.45 in |
| Height | 2,077 mm | 6 ft 9.77 in |
Internal Dimension
| Length | 11,986 mm | 39 ft 3.89 in |
| Width | 2,236 mm | 7 ft 4.03 in |
| Height | 1,968 mm | 6 ft 5.48 in |
Door Opening
| Width | – | – |
| Height | – | – |
Door Opening
| Width | – | – |
| Height | – | – |
Weight
| Max Gross | 30,480 kg | 67,200 lb |
| Tare | 2,720 kg | 6,000 lb |
| Max Payload | 27,760 kg | 62,120 lb |
| Load Capacity | 25 cubic meters | 882 cubic feet |
Weight
| Max Gross | 45,000 kg | 99,210 lb |
| Tare | 5,980 kg | 13,180 lb |
| Max Payload | 39,020 kg | 86,030 lb |
| Load Capacity | 53 cubic meters | 1,862 cubic feet |
